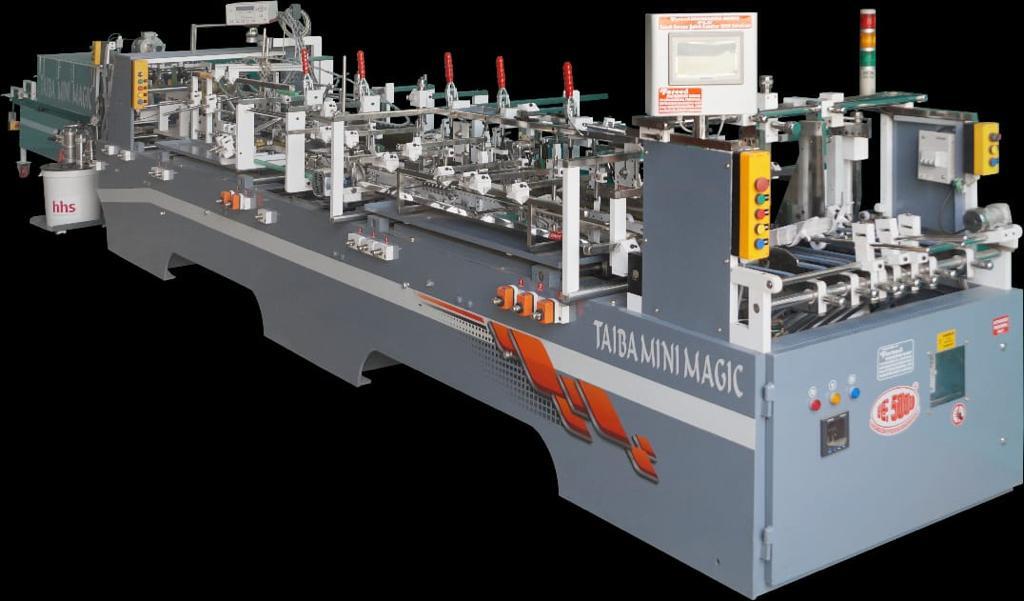

Lock Bottom Folder Gluer Machine

Get a Price/Quote

MOQ : 1 Unit

Lock Bottom Folder Gluer Machine Specification

Motor Power
3 kW

Voltage
380 V

Model No
LBF-1150

Frequency
50 Hz

Control System
PLC

Drive
Belt drive

Noise Level
80 dB

Production Capacity
300 m/min

Power Rating
8 kW

Features
High-speed operation, automatic feeding, precise gluing

Frame Type
Heavy-duty steel

Accuracy
1 mm

Lubricating System
Automatic centralized

Machine Type
Lock Bottom

Connectivity Options
HMI/Touchscreen Interface

Operating Temperature
5C 40C

Cooling System
Air cooling

Product Type
Lock Bottom Folder Gluer Machine

Technology
Other

Power Source
Electricity

Operating Type
Automatic

Power
8 kW

Pressure
Adjustable

Surface Treatment
Painted

Dimension (L*W*H)
11500 x 1600 x 1400 mm

Weight (kg)
3500 kg

Color
Blue & Silver

Usage & Applications
Industrial

Max. Blank Size
650 x 800 mm

Roller Material
Chrome-plated steel

Stacking System
Automatic Delivery with Counter

Gluing System
Cold & Hot Melt Compatible

Installation
On-site installation and training included

Material Supported
200800 gsm cardboard

Setup Time
15 min

Delivery Table Length
2000 mm

Power Phase
3 Phase

Compression Section
Adjustable Pressure Rollers

Humidity Range
80% non-condensing

WorkingSpeed
50300 m/min

Carton Types
Lock bottom, Straight line, Crash bottom

Min. Blank Size
90 x 180 mm

Operator Interface
LCD Touchscreen Display

Safety Features
Emergency Stop, Safety Covers

Feeding System
Automatic Bottom Feeder

Lock Bottom Folder Gluer Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Month

Delivery Time
1 Months

Main Domestic Market
All India

About Lock Bottom Folder Gluer Machine

LOCK BOTTOM MACHINE

SPECIFICATION -

MACHINESPECS -:

1.MACHINE LENGTH30 FEET

2.MACHINE WIDTH3.6 FEET

3.BOX MINIMUM SIZE10 ML EYE DROP

4.BOX MAXIMUM SIZE30 INCH

POWERAND MOTOR LOAD: -

1.POWER10 HP MAIN MOTOR

2.DELIVERY SEC MOTOR 2HP

3. BOX MOTOR3HP

4.AIR COMPRESSOR2 HP

5. FEEDER MOTOR2 HP

ATTACHMENTSINCLUIDED

1. UV CUTTING GRINDER FOR A PIN AND BPIN

2. BAUMER INDIA PVT LTD GERMAN HIGH PRESSURE PISTEN SYSTEM

MATERIAL USED

1. EN-9 GRADE

2. EN-31 GRADE

3. SS 304

4. MS BRIGHT BAR

5. BRASS AND GUNMETAL

6. HARD BEARINGMATERIAL ROUND ROD

7. ALUMNIUMGLUING TANK AND MATERIAL USED SS

( EXPORT FINISHMATERIAL USED WILL NEVER JUNK )

OTHER SPECS

1. FEEDER ON AND OFF MOTORIZED WITHCARTON DISTANCE ADJESTABLE

3. DILIVERY MOTORIZED UP AND DOWN

4. DILIVERY SPEED ADJESTMENT

5.GLUING TANK ADJESTABLE THICKNESS

6. REMOTE OPERATIVE

7. SENSOR BASED DILIVERY

8. PLC TOUCH SCREEN AND BATCH COUNTER

9. BEARING MAKE NBC AND HCH

10. CENTRE POSITION DOUBLE BELT SYSTEM

11. FEEDER VIBRATING MOTOR

12. BIG SPEEDOMETER 17.5 IINCH BY 4.5INCH , IT WILL TELL THE SPEED OF 1 HOUR .

Efficient Production and Versatile Carton Handling

The LBF-1150 folder gluer machine streamlines your carton production with high speeds up to 300 m/min and the flexibility to process various designs, including lock bottom, straight line, and crash bottom carton types. Its automatic bottom feeder and delivery system with an integrated counter ensure continuous, error-free operation for bulk orders or custom runs alike.

User-Friendly Controls and Fast Setup

Equipped with an ergonomic LCD touchscreen, operators enjoy intuitive control and fast adjustments. The easy-to-set compression rollers and automatic feeding facilitate quick changeovers, minimizing downtime and enabling setup in 15 minutes or less. On-site installation and training ensure quick integration into your production line.

Robust Construction and Advanced Safety

Built with a heavy-duty steel frame and chrome-plated rollers, the machine is engineered for longevity and stable high-speed performance. Comprehensive safety featuresincluding an emergency stop and protective coversprioritize operator well-being. The automatic lubrication and air cooling system further extend the machines service life while maintaining consistent operation.

FAQs of Lock Bottom Folder Gluer Machine:

Q: How does the Lock Bottom Folder Gluer Machine improve production efficiency?

A: The machine offers high-speed automatic operation (up to 300 m/min), quick setup within 15 minutes, and minimal manual intervention, improving production throughput and reducing labor costs. The automatic feeder, precise gluing, and delivery system boost reliability and consistency in large-scale manufacturing.

Q: What types of cartons can this machine process, and what are the material requirements?

A: This folder gluer can handle lock bottom, straight line, and crash bottom cartons using cardboard ranging from 200 to 800 gsm. It accommodates blank sizes from 90 x 180 mm up to 650 x 800 mm, making it suitable for a wide array of packaging needs.

Q: Where is the installation and training for the machine provided?

A: On-site installation and training are included with the purchase of the machine. Our technicians will visit your manufacturing facility anywhere in India to ensure proper setup and operator training for optimal usage.

Q: What safety features does the Lock Bottom Folder Gluer Machine offer?

A: The machine is equipped with an emergency stop button and safety covers to protect operators during use. These features meet industrial safety standards, ensuring a secure working environment.

Q: How is the setup and changeover process managed on this machine?

A: Setup is straightforward with the LCD touchscreen and adjustable pressure rollers. Changeovers for different carton types or sizes take less than 15 minutes, streamlining your workflow and minimizing downtime.

Q: What are the benefits of the dual gluing system?

A: The machine supports both cold glue and hot melt applications, providing flexibility for various packaging requirements and ensuring reliable sealing for different types of cartons and materials.

Q: When is periodic maintenance required, and what systems simplify this process?

A: Periodic maintenance is minimized thanks to the automatic centralized lubrication system and durable chrome-plated rollers. Operators are alerted via the control system for timely checks, ensuring smooth operation with minimal interruption.
