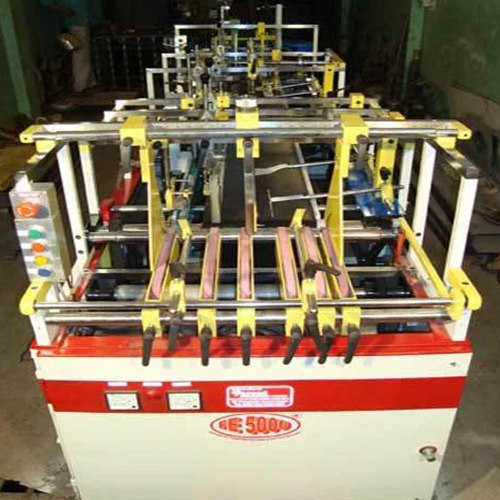

Mannual Corrogation Folder Gluer Machine

Name: Mannual Corrogation Folder Gluer Machine
Brand: FAREED ENGINEERING WORKS

Get a Price/Quote

MOQ : 1 Unit

Mannual Corrogation Folder Gluer Machine Specification

Control System
Manual lever and mechanical control

Accuracy
High folding & gluing precision

Frame Type
Heavy Duty Steel Frame

Lubricating System
Manual greasing

Machine Type
Manual Corrugation Folder Gluer

Cooling System
Not Required

Operating Temperature
Ambient/Room Temperature

Noise Level
Low

Production Capacity
400 - 600 boxes per hour

Features
Rust resistant body, easy to operate, rugged construction

Drive
Manual Drive

Model No
Manufacturer Standard/Custom

Power Source
Manual

Operating Type
Manual

Power
Not Applicable (Manual Operation)

Pressure
Adjustable Pressure

Dimension (L*W*H)
Approx. 1300mm x 2200mm x 1500mm

Weight (kg)
Approx. 800 kg

Color
Blue/Grey (as seen in image)

Usage & Applications
Corrugated box folding and gluing

WorkingSpeed
50 70 m/min

Finishing
Smooth painted, corrosion-resistant

Maintenance
Low, periodic manual lubrication

Supports Multi-ply Corrugated Board
Yes

Operator Required
1-2 persons

Roller Material
Hardened Steel

Max Sheet Size
Approx. 1200mm (Width)

Min Sheet Size
250mm (Width)

Glue Type
Water-based cold glue compatible

Change Over Time
Less than 10 minutes

Shaft Diameter
40 mm

Standard Accessories
Tool kit and operating manual included

Additional Product Specifications

Box Type Supported
Regular & Die-cut corrugated boxes

Safety Features
Emergency stop lever, mechanical locks

Installation
Floor mounted

Side Gauge Adjustment
Provided

Maximum Pasting Thickness
Up to 9 mm

Adjustable Folder
Yes

Mannual Corrogation Folder Gluer Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Month

Delivery Time
1 Months

Main Domestic Market
All India

About Mannual Corrogation Folder Gluer Machine

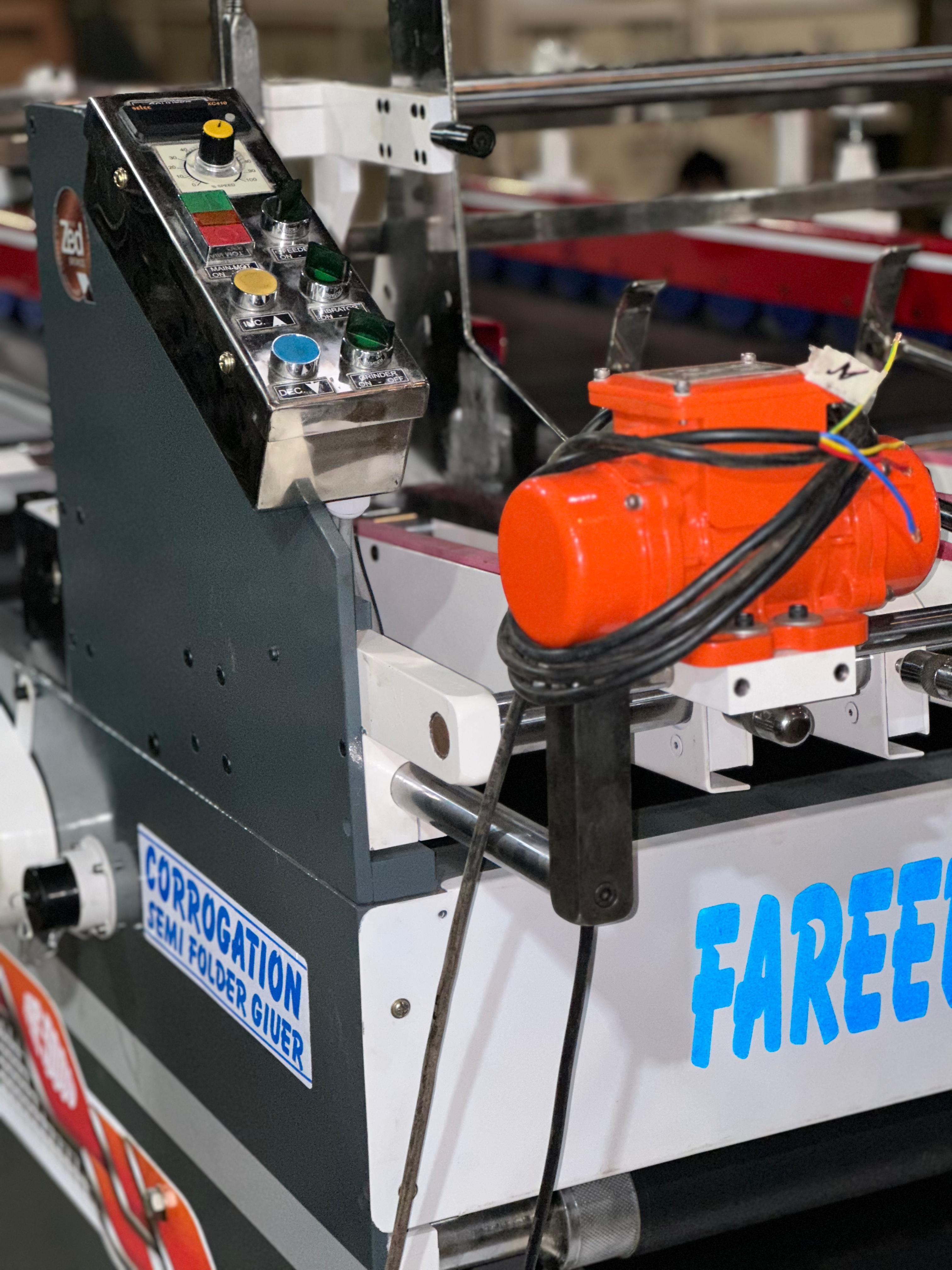

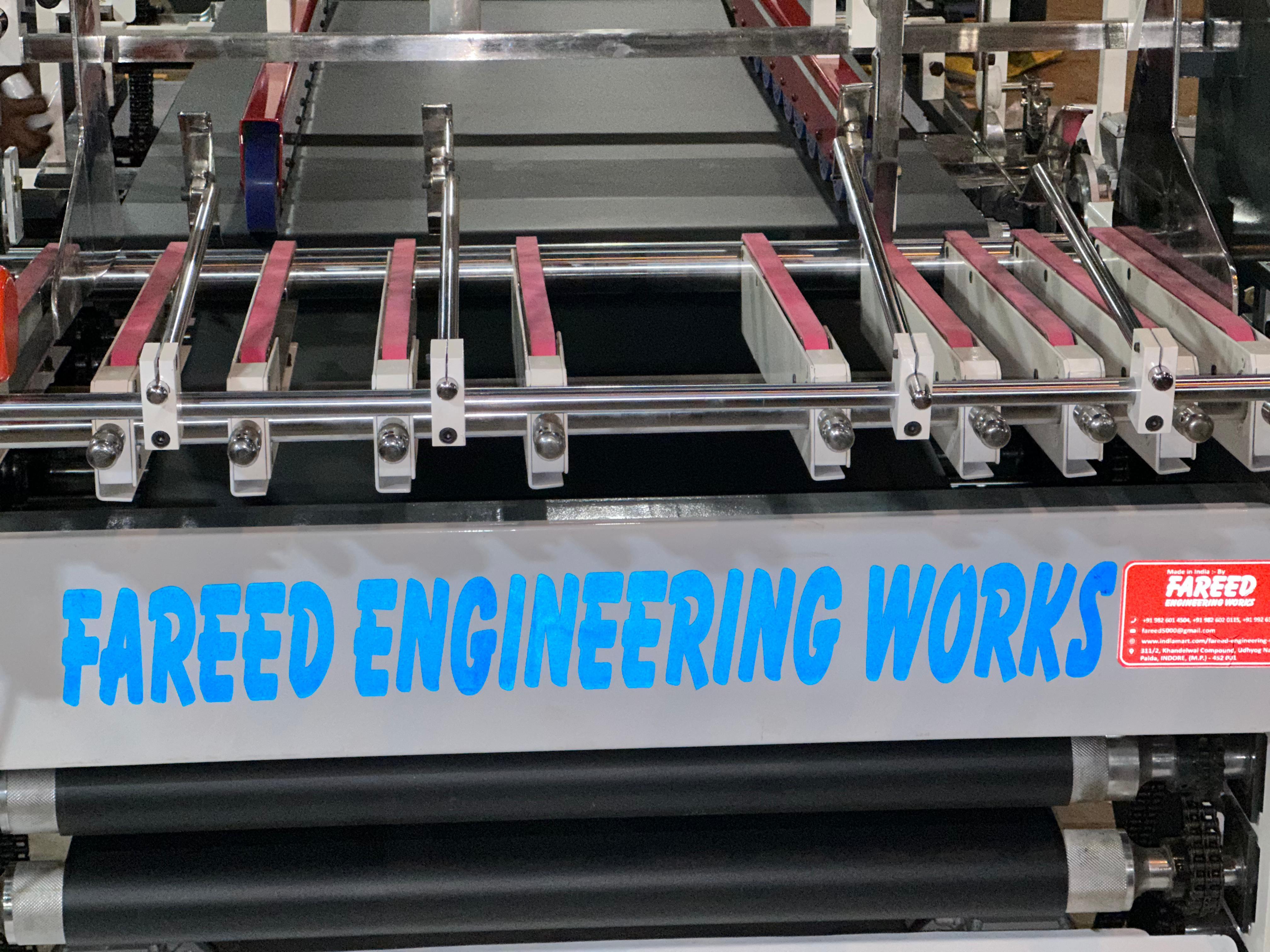

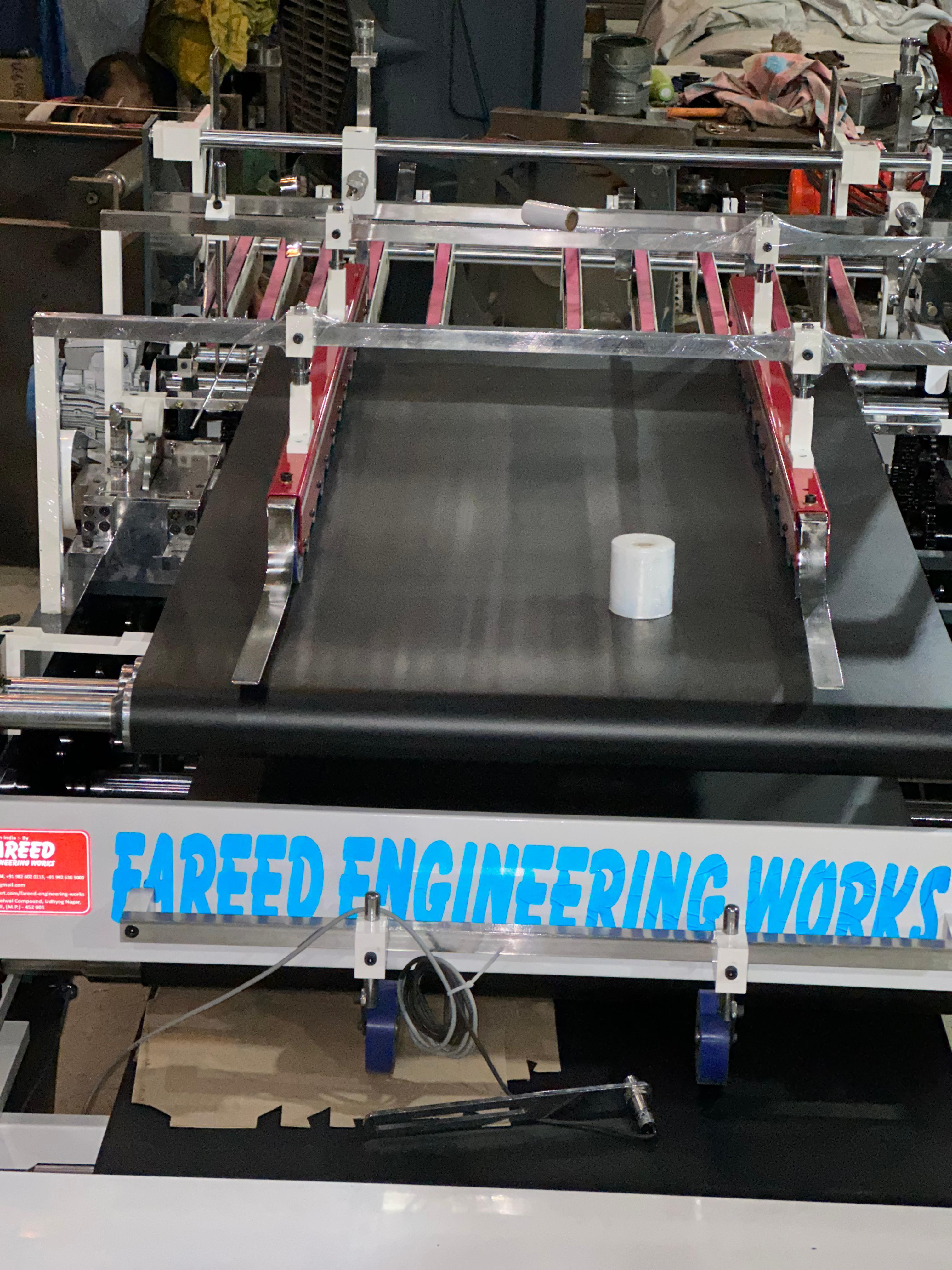

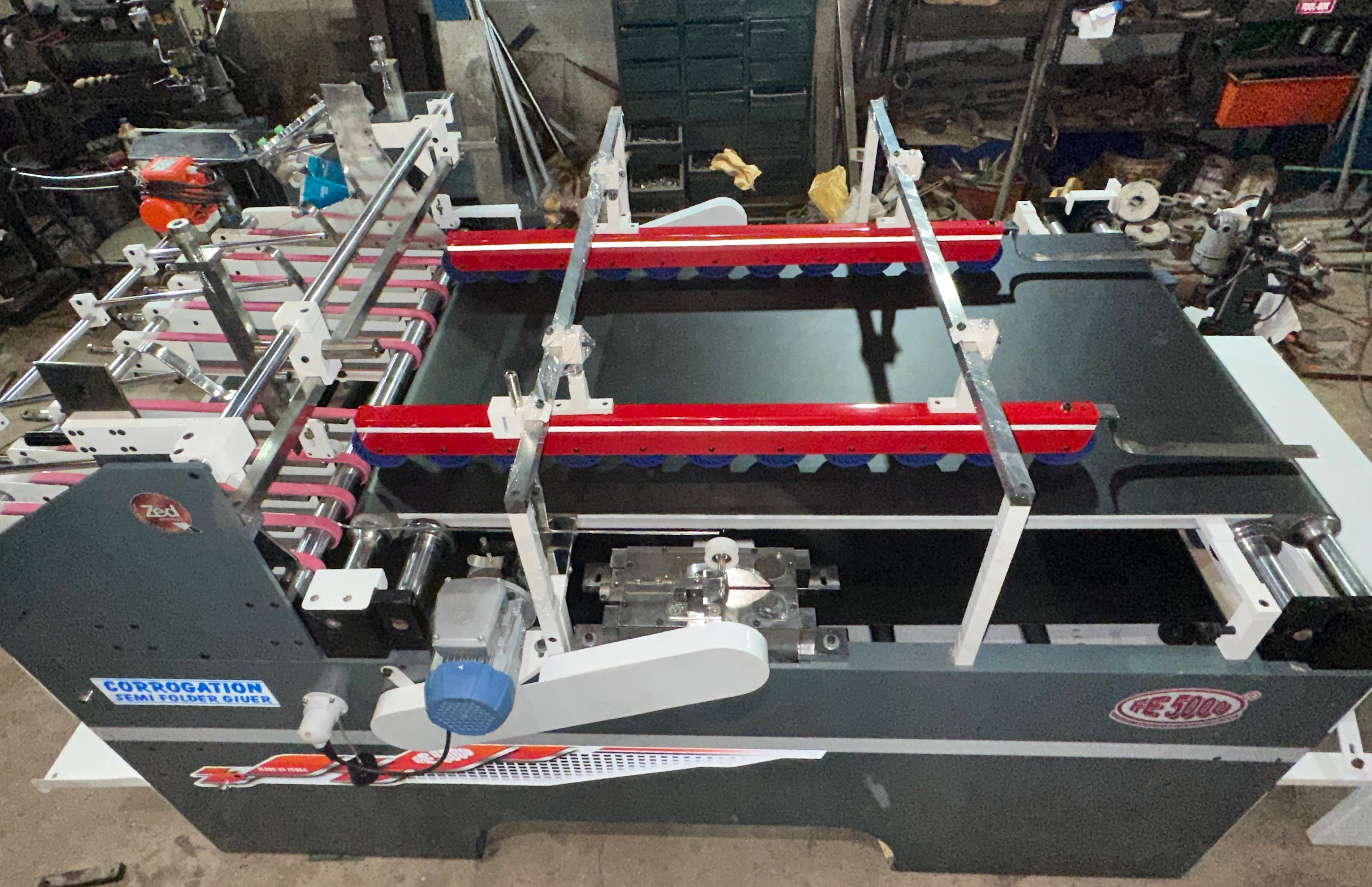

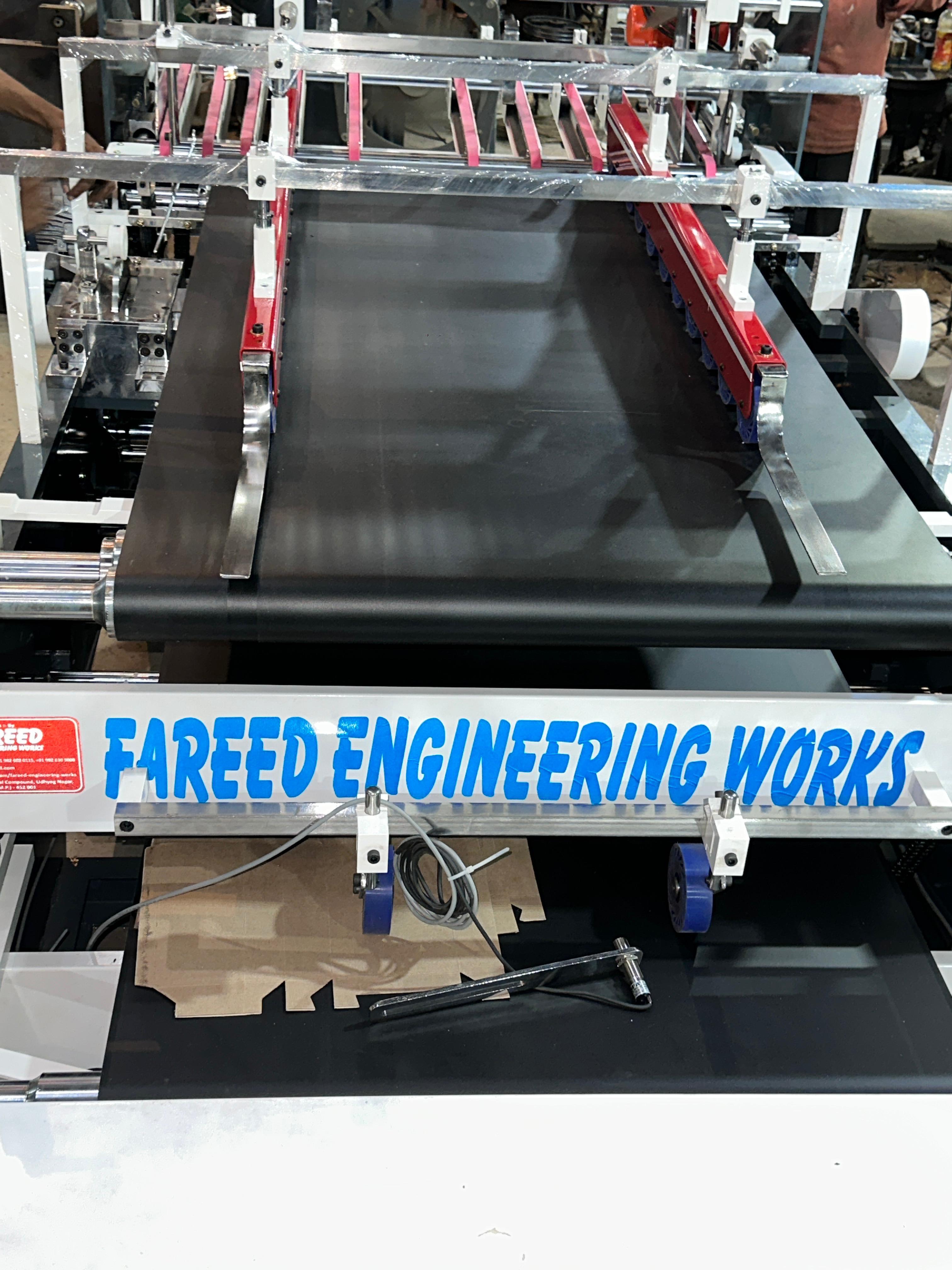

CORROGATION SEMI FOLDER GLUER MACHINE FOR 3PLY & 5 PLY ,

: SPECIFICATION :

1.LENGTH10FEET

2.WIDTH 5FEET

3. BOXMAXIMUM SIZE 40INCH OPEN

4. BOXMINIMUM SIZE7INCH

5.WEIGHT 1350KG

6. POWER 7HP

7. EASY TOOPERATE , JOB CHANGE IN 5 MINUTES ( A TYPE B TYPE )

8. AUTOMATICVARIABLE SPEED CONTROL AND SENSOR BASED STOP

9. DELIVERYMOTOR SAPERATE OPERATING

10. BOTHSIDE GLUE TANK FITTED

11. SSMATERIAL 304 GRADE

12. UV GRINDER ATTACHED

NAME - IKRAMUDDIN

COMPANY - FAREED ENGINEERING WORKS , INDORE

MOB - 9826020115

Efficient & Precise Folding and Gluing

Handle up to 400600 corrugated boxes per hour with optimal accuracy. Designed with adjustable folders and side gauge, the machine delivers high folding and gluing precision, catering to both regular and custom die-cut box requirements. Its manual control system makes operation straightforward and effective.

Durable Construction for Long-Term Use

Made from heavy-duty stainless steel and finished with smooth painted, corrosion-resistant surfaces, this folder gluer assures longevity even in demanding environments. The inclusion of hardened steel rollers and mechanical locks supports consistent quality and reliable safety during operation.

User-Friendly & Low Maintenance

Designed for simplicity, the machine needs only 12 operators and minimal upkeep. Manual lubrication and straightforward controls enhance ease of use, while standard accessories such as a tool kit and manual are provided for quick setup and efficient changeover times.

FAQs of Mannual Corrogation Folder Gluer Machine:

Q: How does the Manual Corrugation Folder Gluer Machine operate without electrical power?

A: This machine uses a manual drive system operated by levers and mechanical controls, requiring no electrical power. Operators simply feed sheets and use manual levers to guide folding and gluing processes.

Q: What types of corrugated boxes can be produced using this folder gluer?

A: The machine supports both regular and die-cut corrugated boxes, accommodating multi-ply boards with a pasting thickness of up to 9 mm.

Q: When is periodic maintenance needed for the machine, and what does it involve?

A: Periodic maintenance involves manual lubrication of rollers and shafts as per usage intervals detailed in the operating manual. Maintenance is low and typically requires basic greasing without extensive downtime.

Q: Where can this machine be installed within a manufacturing facility?

A: As a floor-mounted unit with heavy-duty construction, it is suitable for any standard production area that meets the dimension requirements of 1300mm x 2200mm x 1500mm.

Q: What is the process for changing over between box sizes or types?

A: Changeover is quick, taking less than 10 minutes. Operators adjust the side gauge, folder guide, and roller settings as specified, allowing for efficient transition between different sheet and box dimensions.

Q: How does using water-based cold glue benefit production?

A: Water-based cold glue is compatible with the machine and ensures strong adhesion for corrugated boards. It is safer for operators, non-toxic, and easy to clean, meeting environmental standards.

Q: What are the main benefits of using this manual machine for corrugated box production?

A: It delivers high precision, low noise operation, and requires minimal maintenance. The machines rugged design, rust resistance, and rapid setup make it ideal for manufacturers aiming for reliable, high-throughput production with low running costs.
